Type 3

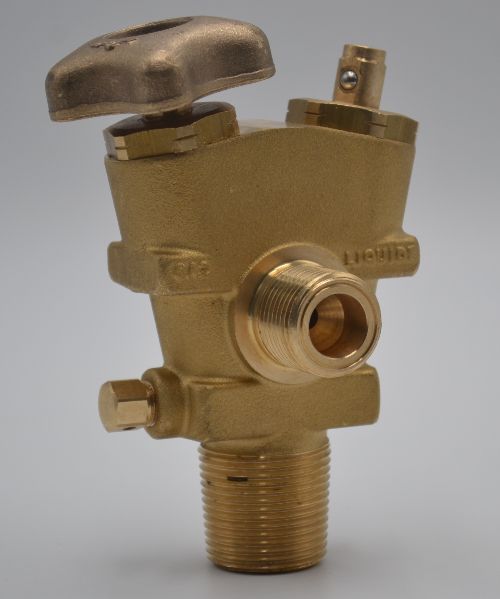

TYPE 3 cylinder valves are double-phase, O-ring high-pressure valves suitable for all types of compressed, dissolved or mixed gases. They can be used for operating pressures up to 250 ba, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 250 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure: | No |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | 48 mm brass: clip-on |
| 48 mm brass, nickel-plated, clip-on | |
| 40 mm black latamid | |
| Finishes: | Brass or nickel-plated |
| Option: | Engraving of your logo or other |
ACCESSORIES :
- Dip tubes
- Plugs
